Combination type
SLP-075 VB/1 S
Order number: A02156
pluggable module, visual fault signalling, remote fault signalling
- combined type surge arrester (serial combination varistor+GDT)
- installation to LV installations, especially to sub-distribution boards, suitable also for measuring circuits
- for protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits
- no leakage current
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2 | |
| Mounting | DIN rail 35 mm | |
| Maximum operating voltage | Uc | 75.00 V AC |
| Maximum operating voltage | Uc | 100.00 V DC |
| Type of network | TN | |
| Maximum overcurrent protection | 125 A gL/gG | |
| Short-circuit current rating | ISCCR | 35.0 kA |
| Nominal discharge current (8/20 µs) | In | 15.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 25.00 kA |
| Voltage protection level | Up | 0.60 kV |
| Voltage protection level at 5 kA | Up | 0.30 kV |
| Response time | ta | 100 ns |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Cross-section of remote indication conductors solid (max) | 1.5 mm2 | |
| Cross-section of remote indication conductors stranded (max) | 1.5 mm2 | |
| Fault indication | red indication field | |
| Remote indication | potential-free change-over contact | |
| Remote indication contacts | 250V/0,5A AC,250V/0,1A DC | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000941 | |

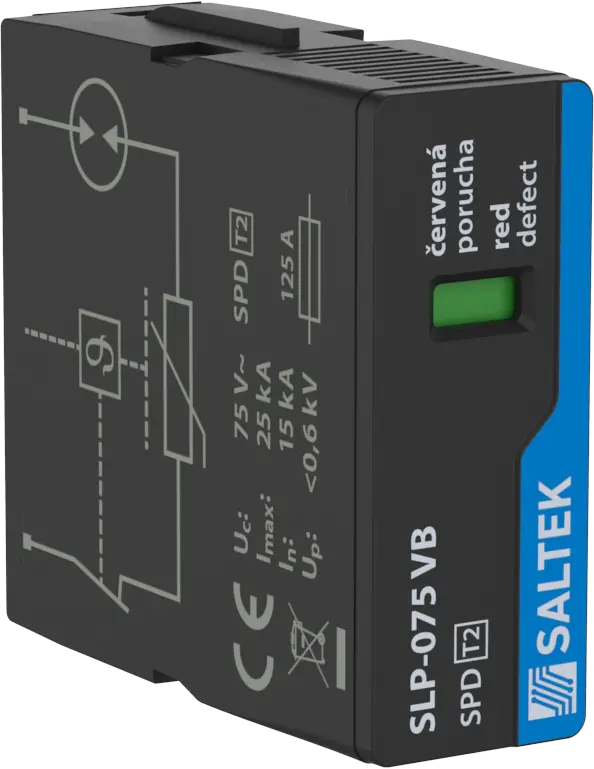

| Plug module | SLP-075 VB/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090521563 |
Files for download
-

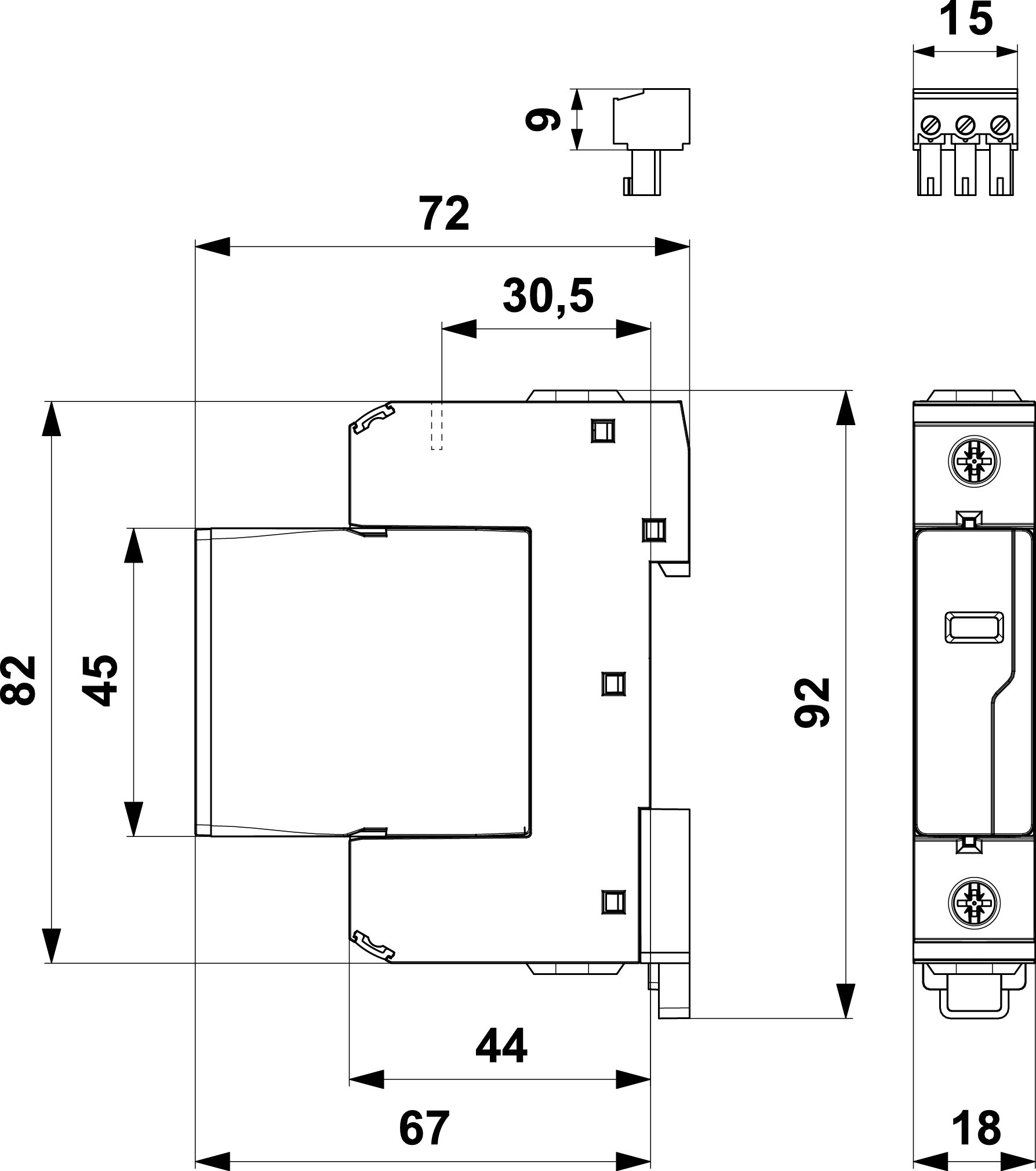

Product dimensions
-

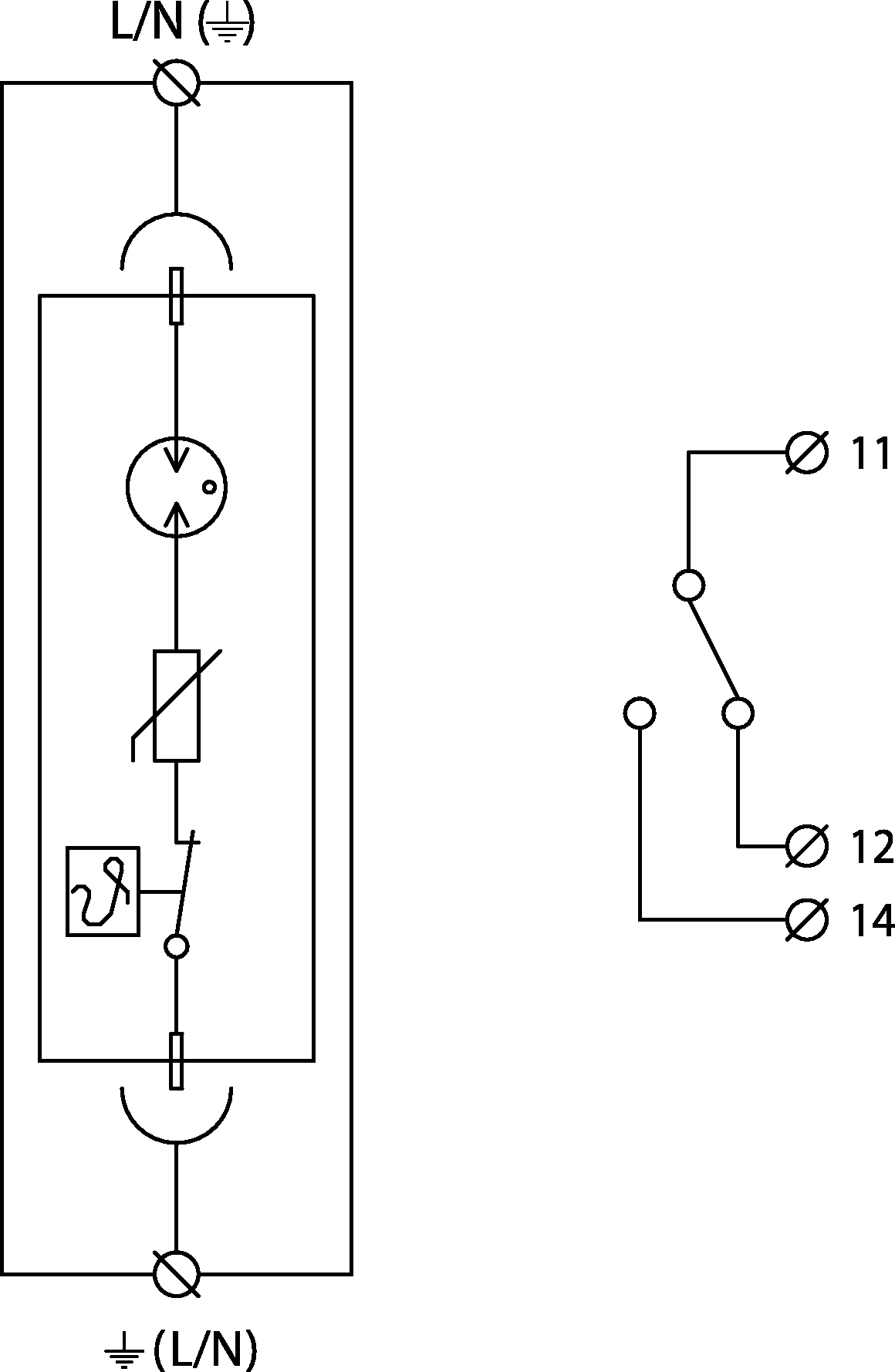

Basic circuit diagram
