Spare modules for DC and PV
SLP-PV350Y V/0
Order number: A04306
- replacement module for FLP-PV700 V/U
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Maximum operating voltage | Uc | 350.00 V DC |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Response time | ta | 25 ns |
| Fault indication | red indication field | |
| ETIM Class | EC000941 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090543060 |
Files for download
-

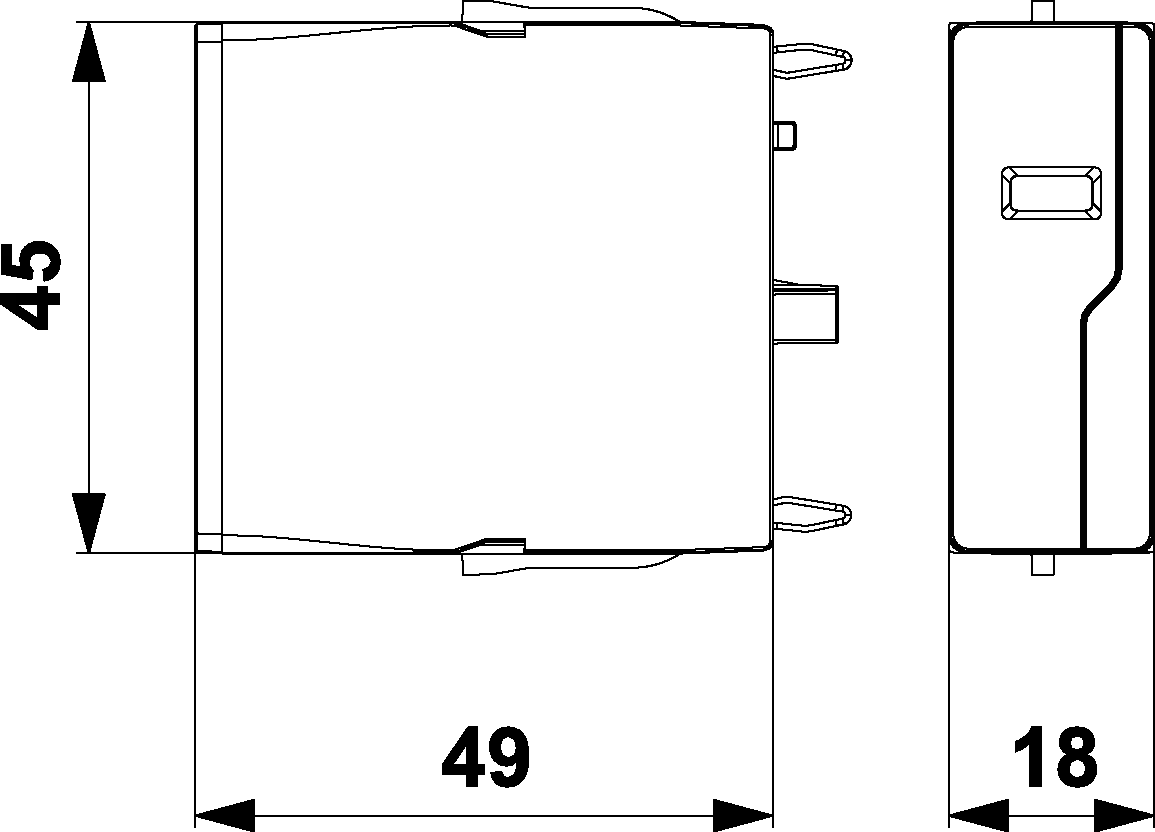

Product dimensions
-
Basic circuit diagram
