DA-320-LED

DA-320-LED

Describe first line
fault signalling by supply interruption
Product description
  • surge protection especially for LED lights
  • installation close to protected equipment in LV power circuits
  • also for equipment in external part of building with low exposure level (according to IEEE C62.41.2)
Ordering number
A05876

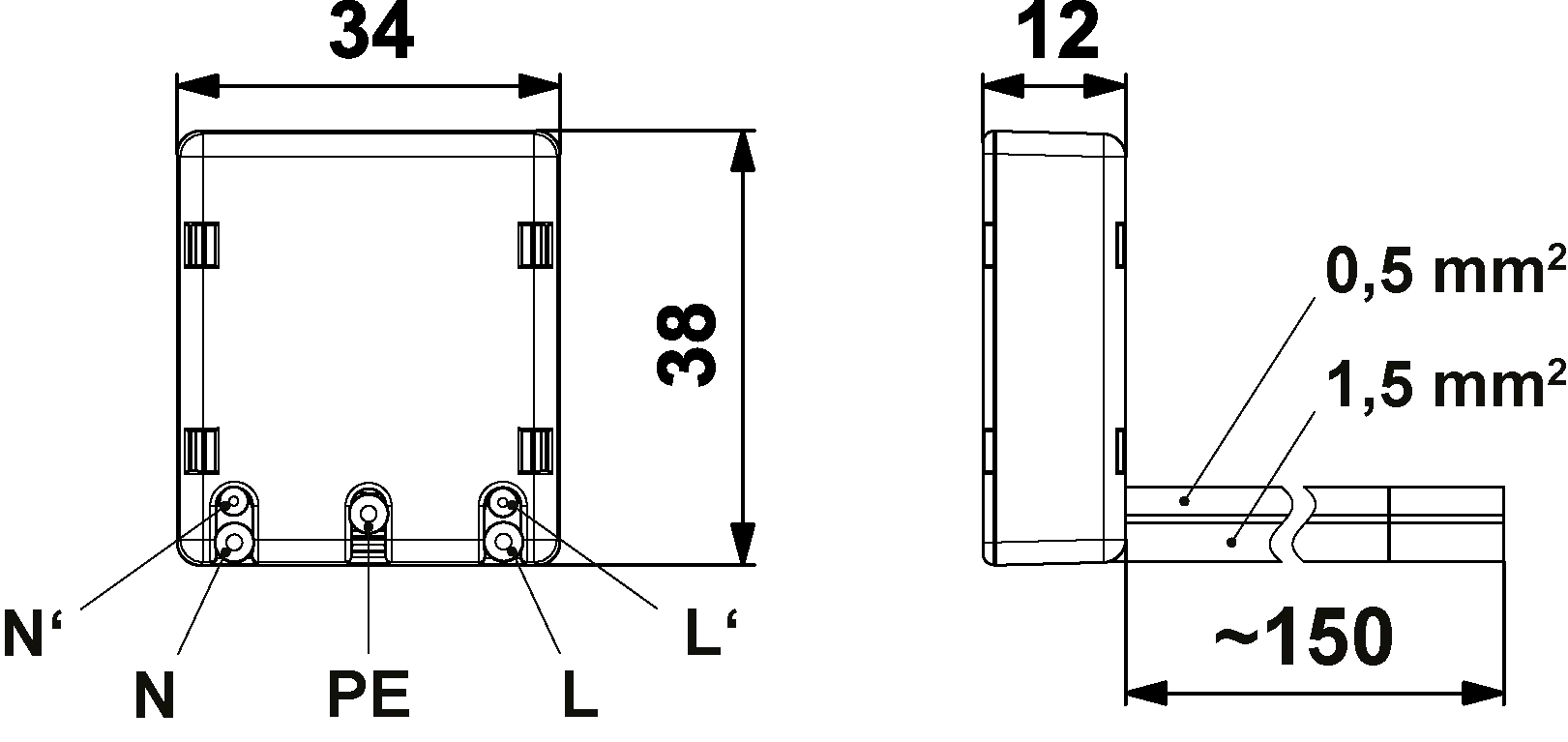

Dimension drawing

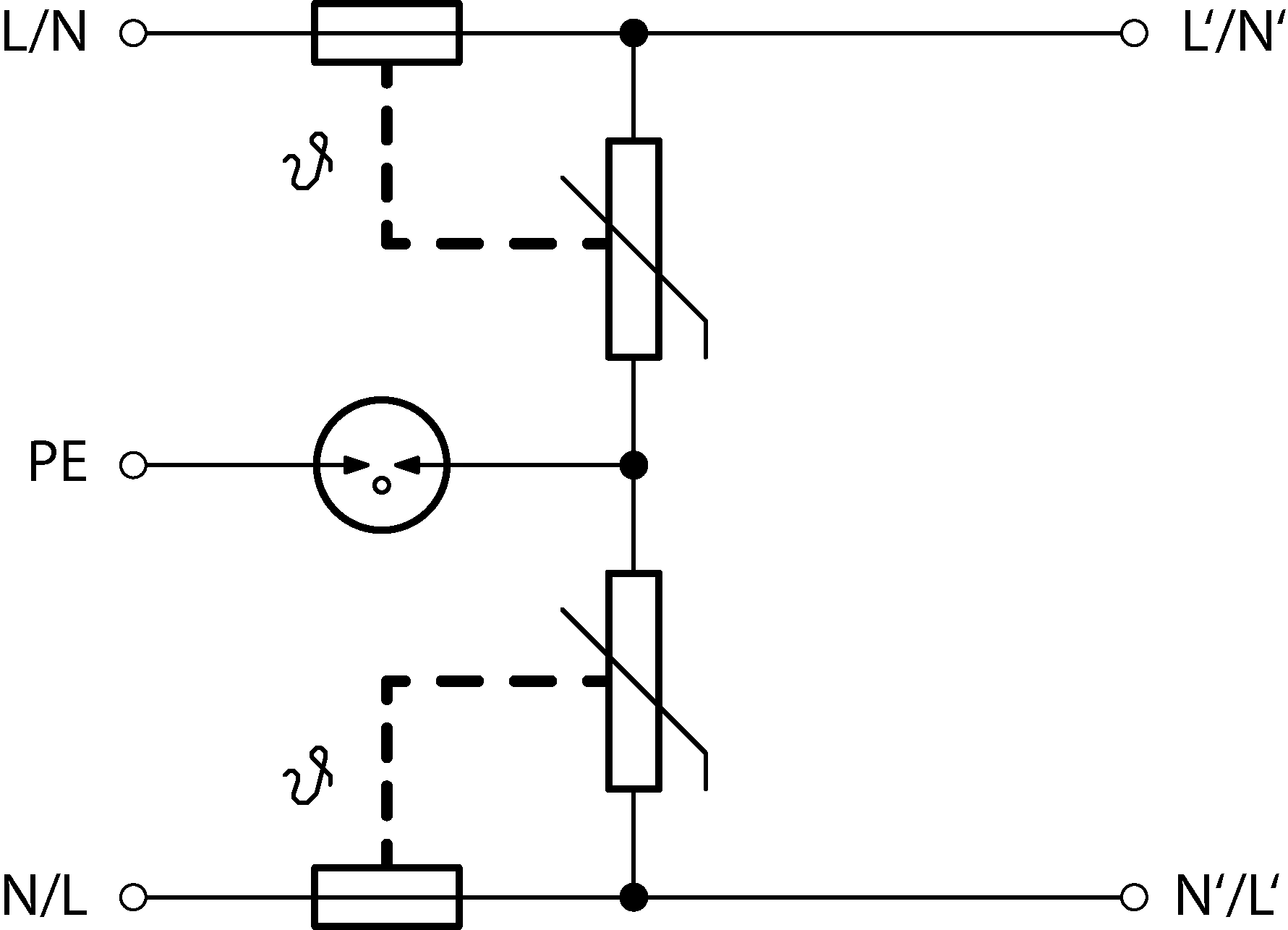

Basic circuit diagram
Technical specifications
Type of SPD
T3
Nominal voltage
Un
230
V AC
Maximum operating voltage
Uc
320,00
V AC
Nominal load current
IL
5,000
A
Nominal discharge current (8/20 µs) L-N
In
3,00
kA
Nominal discharge current (8/20 µs) N-PE
In
3,00
kA
Nominal discharge current (8/20 µs) L+N-PE
In
5,00
kA
Test voltage L-N
Uoc
6,0
kV
Test voltage N-PE
Uoc
6,0
kV
Test voltage L+N-PE
Uoc
10,0
kV
Test voltage L-PE
Uoc
6,0
kV
Voltage protection level mode L-N
Up
1,65
kV
Voltage protection level mode N-PE
Up
1,50
kV
Voltage protection level mode L-PE
Up
1,50
kV
Short-circuit current rating
ISCCR
1,5
kA
Maximum overcurrent protection
16 A gL/gG or B 16 A
Response time L-N
ta
25
ns
Response time N-PE
ta
100
ns
TOV 5 s L-N
335
V
TOV 5 s L-PE
440
V
TOV characteristic (TOV 5 s)
withstand
TOV 120 min L-N
440
V
TOV characteristic (120 min)
withstand
TOV 200 ms L-PE
1 455
V
TOV 200 ms N-PE
1 200
V
TOV characteristic (TOV 200 ms)
safe failure
Fault indication
loss of voltage
Degree of protection
IP 20
Range of ambient temperatures - min
-40
°C
Range of ambient temperatures - max
80
°C
Mounting
installation box
According to standard
EN 61643-11:2012, IEC 61643-11:2011
ETIM Class
EC000942
Customs tariff number
85363010
EAN
8595090558767

Other products in this category

Ordering number:
A06044
module of surge protection especially for LED lights regardless of the type of power system, installation close to protected equipment, fault with power supply interruption, 10 A, installation C High
