Supply (DP and DMP) - with RFi filter

DPF-024DC-16

Order number: A06636

visual fault singalling

  • surge protection with integrated RFi filter
  • installation to LV installations, close to protected equipment
  • for protection of control systems, electronic security and fire systems against impact of transient overvoltage and RF disturbance
  • for AC or DC power supply

Technical parameters

Parameter name Parameter value
Type of SPD T3
VF filter yes
Mounting DIN rail 35 mm
Nominal voltage Un 24 V AC
Maximum operating voltage Uc 34.00 V AC
Maximum operating voltage Uc 34.00 V DC
Nominal load current IL 16.000 A
Maximum overcurrent protection 16 A gL/gG or C 16 A
Filter attenuation at 1MHz (50 ?/50 ?) symmetrical 45 dB
Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical 30 dB
Test voltage L+ - L- 4.0 kV
Test voltage L+(L-)-PE 4.0 kV
voltage protection level L+ - L- 0.29 kV
voltage protection level L+(L-)-PE 0.50 kV
Response time L+ - L- 25 ns
Response time L+(L-)-PE 100 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (max) 6.00 mm2
Cross-section of connected conductors stranded (max) 6.00 mm2
Fault indication red indicator
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Customs tariff number 85363010
EAN 8595090566366

Files for download

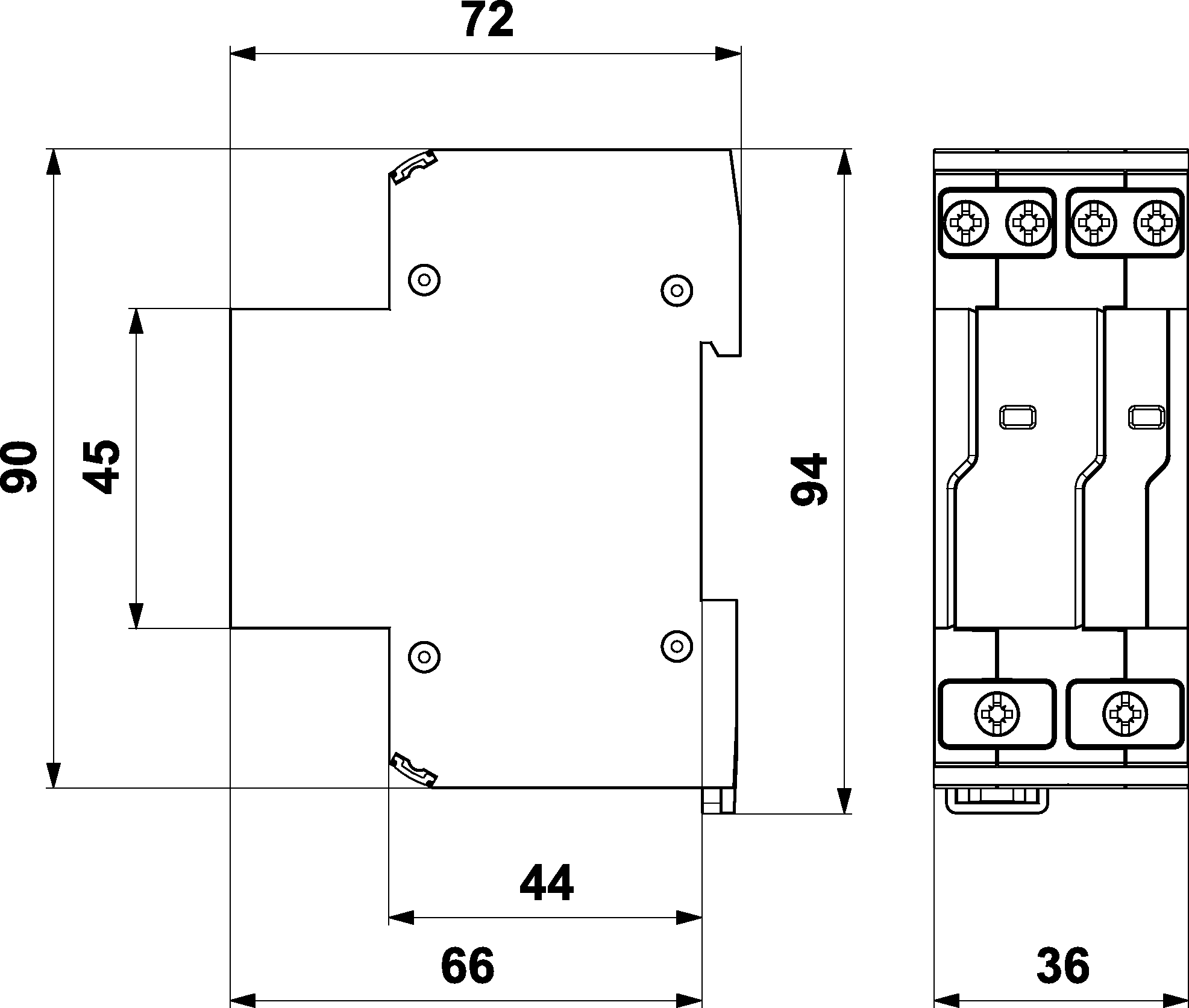

  • Product dimensions

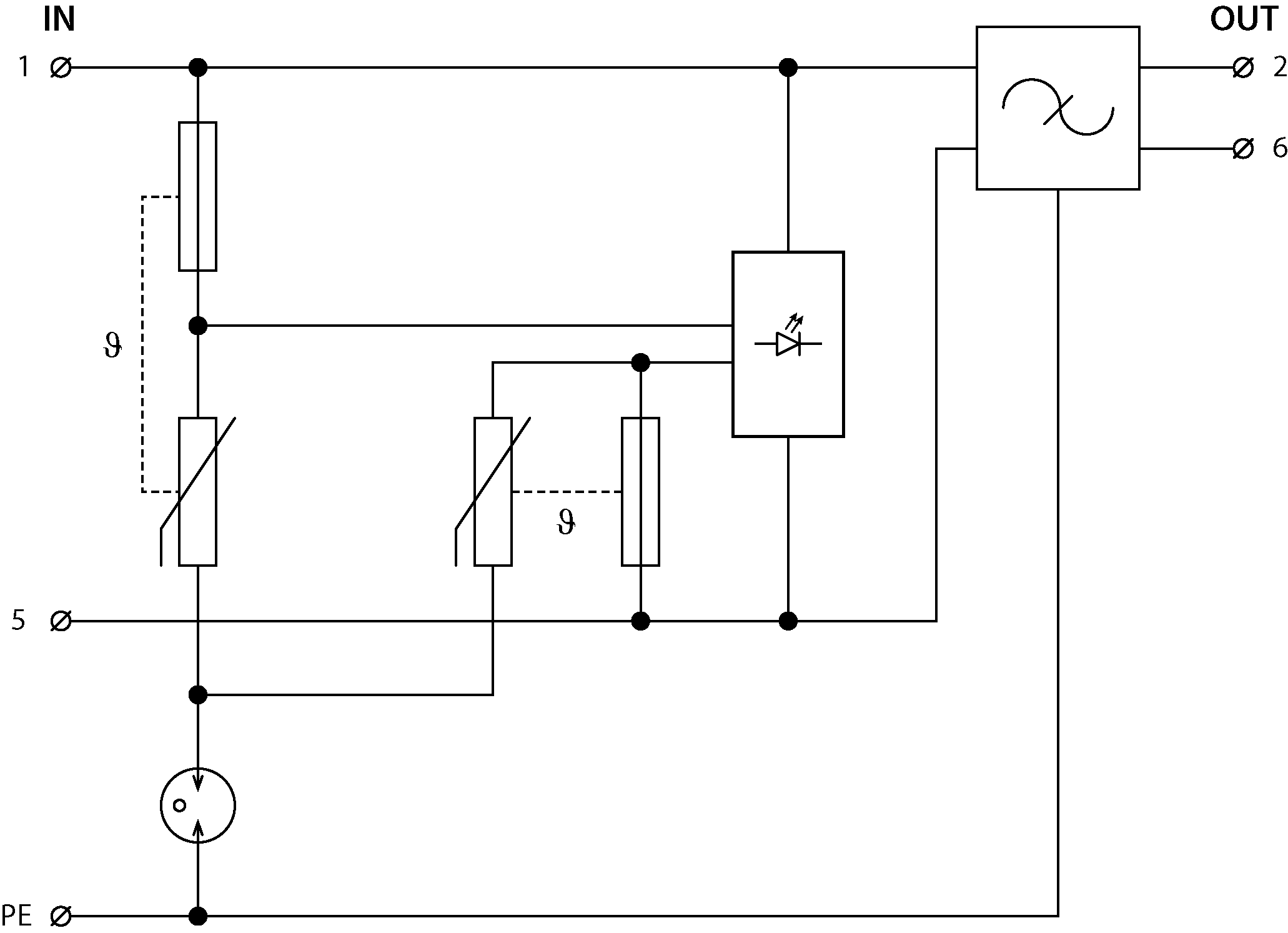

  • Basic circuit diagram
