SPD

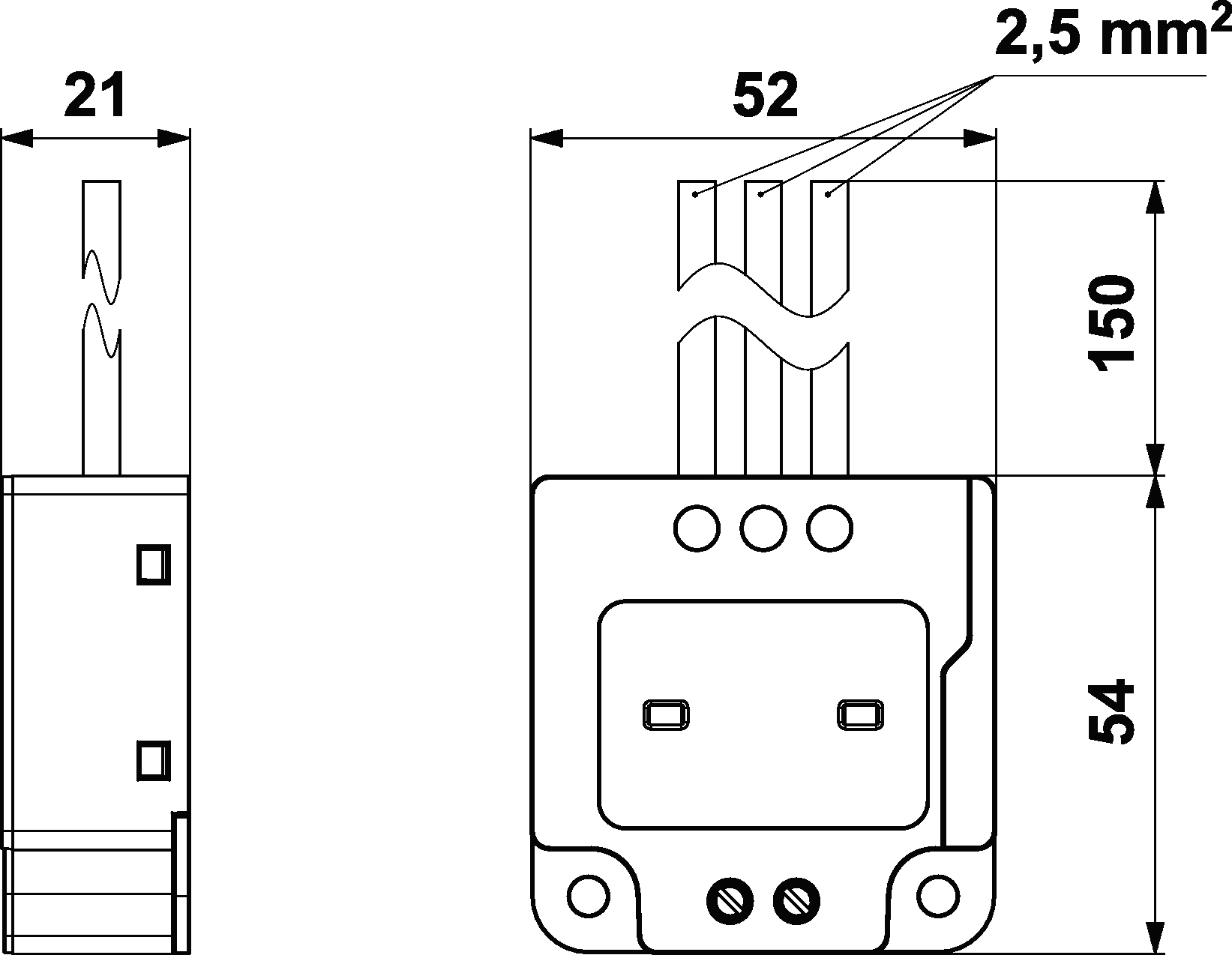

SP-T2+T3-320/Y-CCT-LED
Order number: A06243input cores/output terminals, fault signalling by supply interruption
- surge arrester especially for LED lights
- installation close to protected equipment in LV power circuits
- also for equipment in external part of building with high exposure level (according to IEEE C62.41.2)
Technical parameters
Parameter name | Parameter value | |
---|---|---|
Type of SPD | T2,T3 | |
Nominal voltage | Un | 230 V AC |
Maximum operating voltage | Uc | 320.00 V AC |
Nominal load current | IL | 10.000 A |
Type of network | TT|TN | |
Maximum overcurrent protection | 32 A gL/gG or C 32 A | |
Short-circuit current rating | ISCCR | 3.0 kA |
Residual current | IPE | 0.004 mA |
Nominal discharge current (8/20 µs) L-N | In | 5.00 kA |
Nominal discharge current (8/20 µs) N-PE | In | 5.00 kA |
Maximum discharge current (8/20 µs) L-N | Imax | 10.00 kA |
Maximum discharge current (8/20 µs) N-PE | Imax | 10.00 kA |
Test voltage L-N | Uoc | 10.0 kV |
Test voltage L-PE | Uoc | 10.0 kV |
Test voltage N-PE | Uoc | 10.0 kV |
Voltage protection level mode L-N | Up | 1.30 kV |
Voltage protection level mode L-PE | Up | 1.50 kV |
Voltage protection level mode N-PE | Up | 1.50 kV |
Response time L-N | ta | 25 ns |
Response time N-PE | ta | 100 ns |
TOV 5 s L-N | 335 V | |
TOV 5 s L-PE | 440 V | |
TOV characteristic (TOV 5 s) | withstand | |
TOV 120 min L-N | 440 V | |
TOV characteristic (120 min) | withstand | |
TOV 200 ms L-PE | 1 455 V | |
TOV 200 ms N-PE | 1 200 V | |
TOV characteristic (TOV 200 ms) | safe failure | |
Cross-section of connected conductors solid (max) | 2.50 mm2 | |
Cross-section of connected conductors stranded (max) | 1.50 mm2 | |
Fault indication | loss of voltage, dark grey indication field | |
Degree of protection | IP 20 | |
Range of ambient temperatures (min/max) | -40 / 80 °C | |
Humidity | 5 - 95 % | |
According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
ETIM Class | EC000942 | |
Customs tariff number | 85363030 | |
EAN | 8595090562436 |
