Bridges
RTO-35
Order number: A04178
- coupling impedance
- for coordination of SPDs type 1 and 2 or type 2 and 4
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 450 V AC |
| Nominal load current | IL | 32.000 A |
| Frequency | f | 50 Hz |
| Resistance | R | 4 mOhm |
| Inductance | L | 5.40 uH |
| Maximum overcurrent protection | 32 A gL/gG or C 32 A | |
| Power loss at IL | 3.68 W | |
| Cross-section of connected conductors solid (max) | 10.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 10.00 mm2 | |
| Cross-section of connected wires stranded with ferrule (max) | 10.00 mm2 | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 30 °C | |
| ETIM Class | EC002496 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090541783 |
Files for download
-

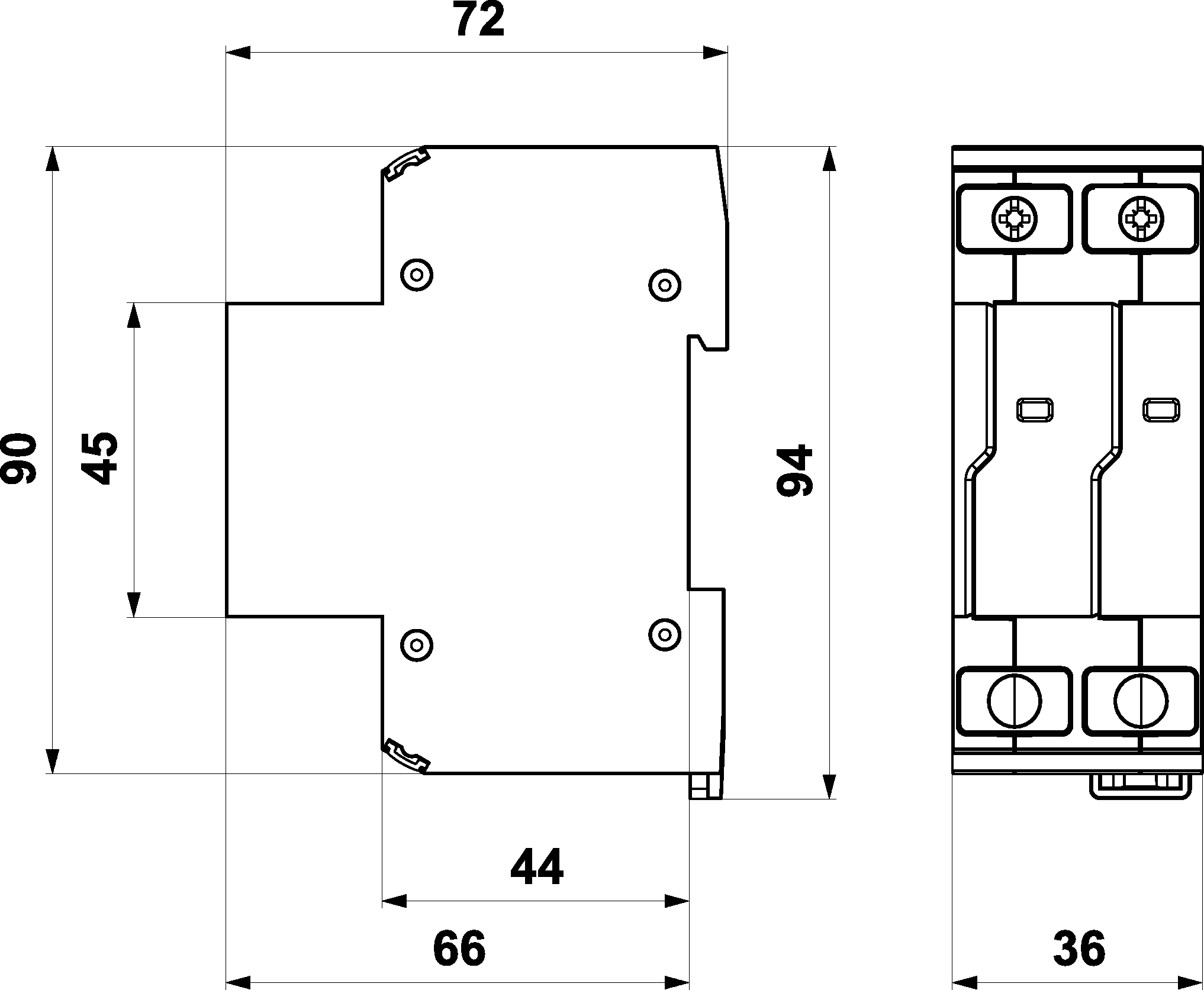

Product dimensions
-

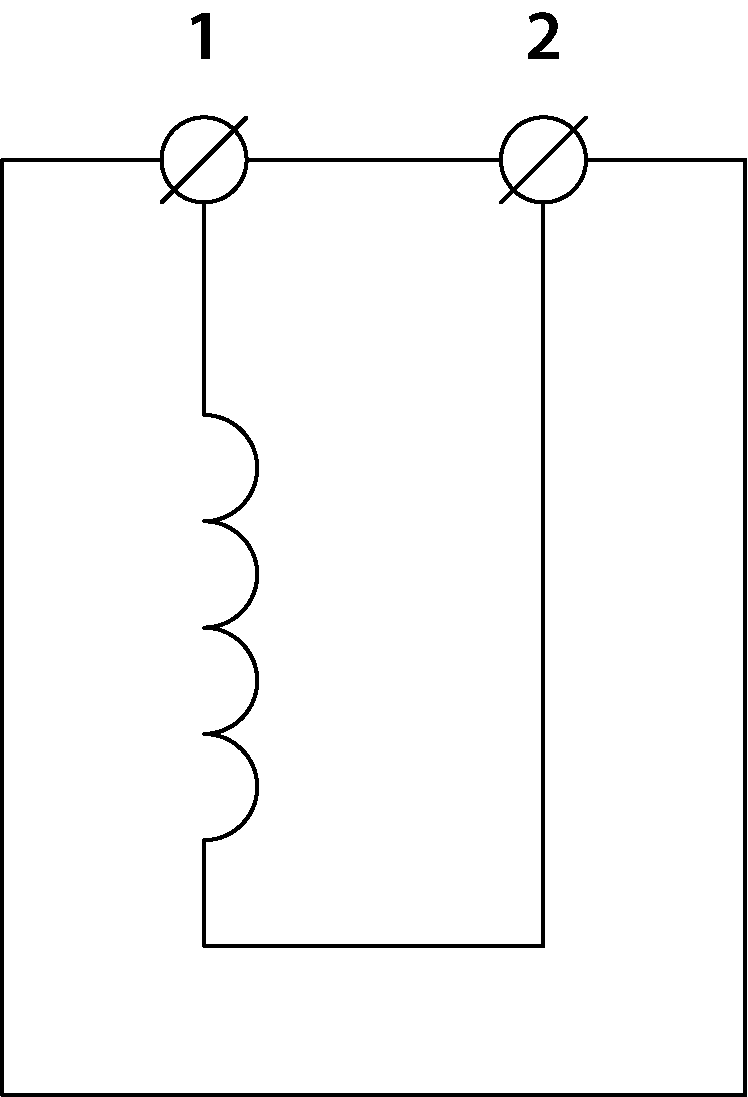

Basic circuit diagram
