VLD class 4 (PVL)
PVL-1000-045-R01-O
Order number: A07131
Voltage limiting device class 4 type O+F
- limits impermissible touch voltage at conductive parts of railways infrastructure (DC or AC)
- creates temporary short-circuit between return current path (rail) and earthed metallic parts of infrastructure to limit touch voltage
- very high repeatable current load allows application at any part of the railway(substations, passenger stations, workshops, …)
- protects passengers that might enter into contact with the parts affected
- eliminates high pulse overvoltage induced into the traction system by a lightning strike
- programmable current disconnection for stray current reduction
- possible integration into SCADA or IoT systems
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Class VLD according to EN 50526-2 | 4.2 | |
| Type VLD according to EN 50122-1 | VLD-O+F | |
| Highest voltage of railway traction | Un | 3 000.00 V DC |
| Overvoltage detection | both polarities DC / AC | |
| Rated current of main contactor | Ir | 1 000 A @ 60 min |
| Rated current of manual shorting switch | Ir | 1 000 A @ 60 min |
| Nominal triggering voltage | UTn | 45.00 V |
| Non-triggering voltage | Uw | 36.00 V |
| Maximal short time DC withstand current (@ 30 ms) | Iw | 16.00 kA |
| Maximal long time DC withstand current (@ 30 s) | Iw | 3.00 kA |
| Highest short-term pulse load (VLD-F) | 120 MA2s | |
| Leakage current at Uw | IL | < 250,00 μA |
| Response time of A2 SPDs | TR | 25.00 ns |
| Response time of thyristors | TR | < 1,50 ms |
| Response time of the contactor | TR | ≥ 200 ms (programmable) |
| Remote monitoring (SCADA) | MODBUS using TCP/IP | |
| Rated power supply voltage AC 50 Hz / 60 Hz | 110-230 V | |
| Rated power supply voltage DC | 130-250 V | |
| Maximal active power consumption in idle/switched on mode | 12 W / 28 W | |
| Voltage measurement tolerance | ±5 V, suppressed zero in the 0 to 5 V range | |
| Current measurement tolerance | +5 A/−10 A up to 50 A, ±10 % from 50 A to 1000 A, +10/−0 % from 1000 A to 2500 A, suppressed zero in the 0 to 5 A range | |
| Temperature measurement tolerance | ±5 °C | |
| Location of SPD | indoor | |
| Altitude | up to 2000 m above sea level | |
| Degree of protection | IP 30 | |
| Range of ambient temperatures (min/max) | -20 / 55 °C | |
| Rated insulation voltage, main power circuit – control circuit | 3,0 KV AC / 4,2 KV DC | |
| Cable entry | from the bottom | |
| Humidity | 20 - 95 % | |
| Weight | ~ 50 kg | |
| According to standard | EN 61010-1, EN 50526-2, EN 50124-1, EN 50122-1, EN 50121-4 | |
| Customs tariff number | 85354000 | |
| EAN | 8595090571315 |
Files for download
-

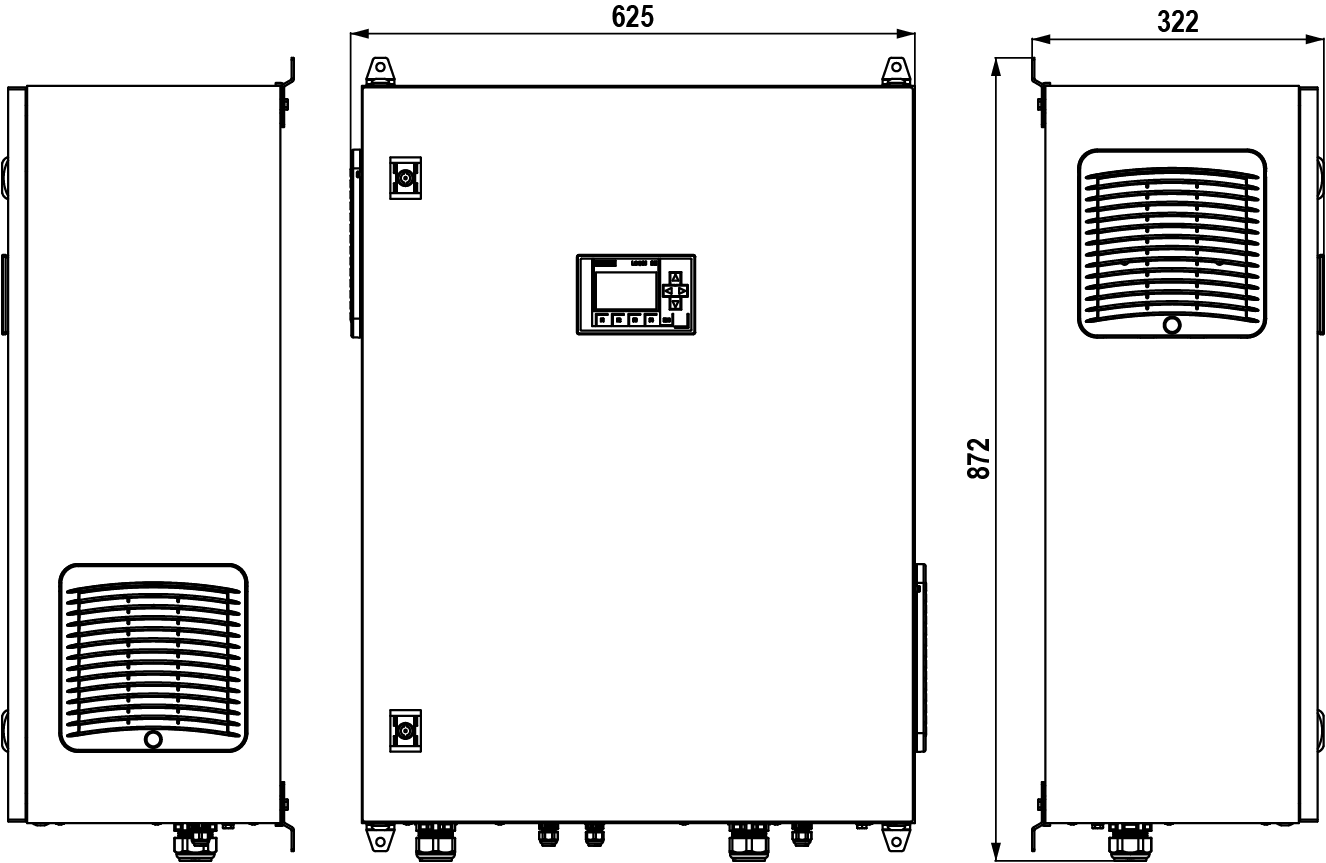

Product dimensions
.PNG)
