Spare modules
FLP-12,5-075-VH/0
Order number: A04571
- replacement module for FLP-12,5-075-VH/x
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T1,T2 | |
| Maximum operating voltage | Uc | 75.00 V AC |
| Maximum operating voltage | Uc | 75.00 V DC |
| Short-circuit current rating | ISCCR | 25.0 kA |
| Lightning impulse current (10/350 µs) | Iimp | 12.50 kA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level | Up | 0.45 kV |
| Response time | ta | 25 ns |
| Fault indication | red indication field | |
| ETIM Class | EC000381 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090545712 |
Files for download
-

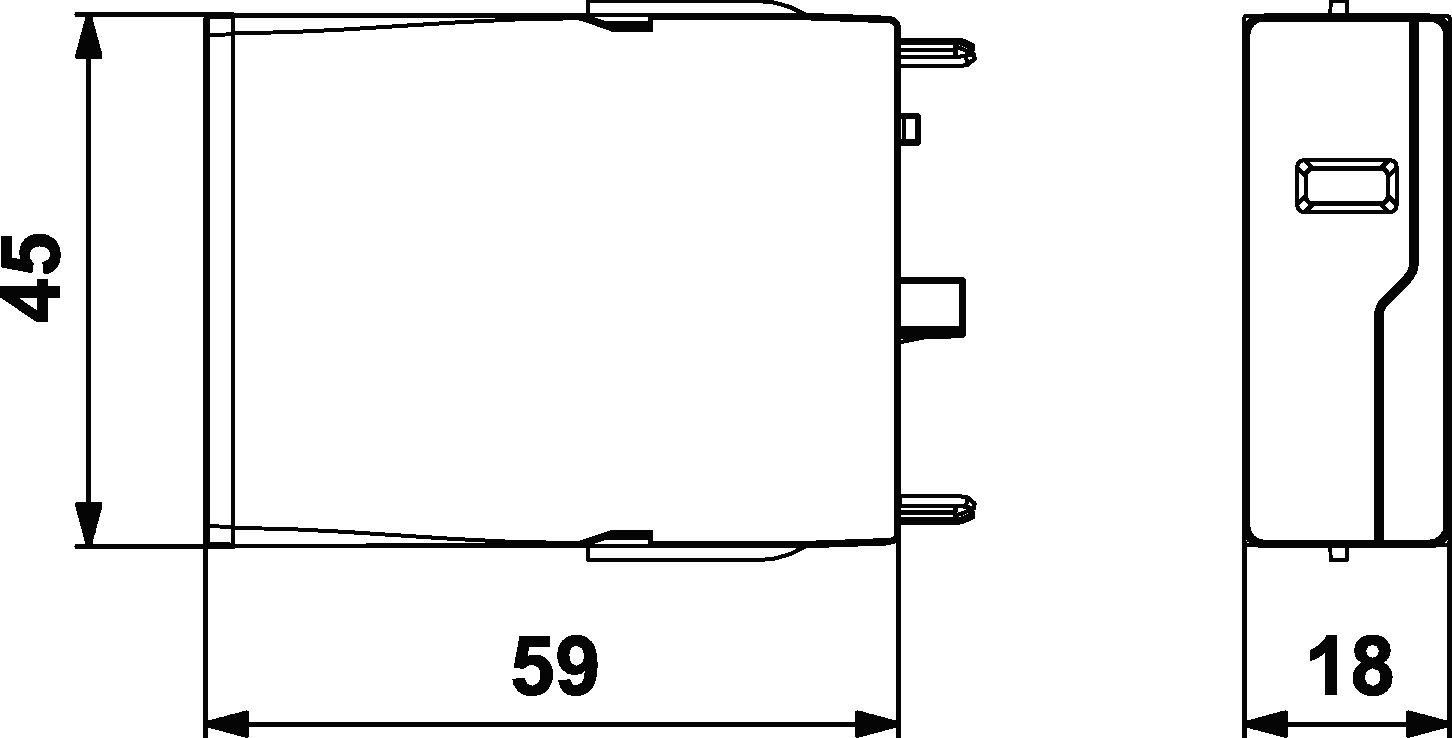

Product dimensions
-
Basic circuit diagram
