Build in

DA-275-A

Order number: A06738

acoustic fault signalling

  • SPD for additional installation to devices or equipments
  • installation to LV installations, close to protected equipment
  • for protection of all LV equipments against surge voltage
  • can be used for single-phase power supply networks with isolation transformer, connection of L and N wires can be changed

Technical parameters

Parameter name Parameter value
Type of SPD T3
Mounting installation box
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 275.00 V AC
Type of network TT|TN
Maximum overcurrent protection B 16 A
Short-circuit current rating ISCCR 1.5 kA
Residual current IPE 0.004 mA
Nominal discharge current (8/20 µs) L-N In 2.00 kA
Nominal discharge current (8/20 µs) N-PE In 2.00 kA
Test voltage L-N Uoc 4.0 kV
Test voltage L-PE Uoc 4.0 kV
Test voltage N-PE Uoc 4.0 kV
Voltage protection level mode L-N Up 1.50 kV
Voltage protection level mode L-PE Up 1.50 kV
Voltage protection level mode N-PE Up 1.50 kV
Response time L-N ta 25 ns
Response time N-PE ta 100 ns
TOV 5 s L-N 335 V
TOV 5 s L-PE 440 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 440 V
TOV characteristic (120 min) withstand
TOV 200 ms L-PE 1 455 V
TOV 200 ms N-PE 1 200 V
TOV characteristic (TOV 200 ms) safe failure
Fault indication acoustic signalling
Degree of protection IP 20
Range of ambient temperatures (min/max) -20 / 70 °C
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Customs tariff number 85363010
EAN 8595090567387

Files for download

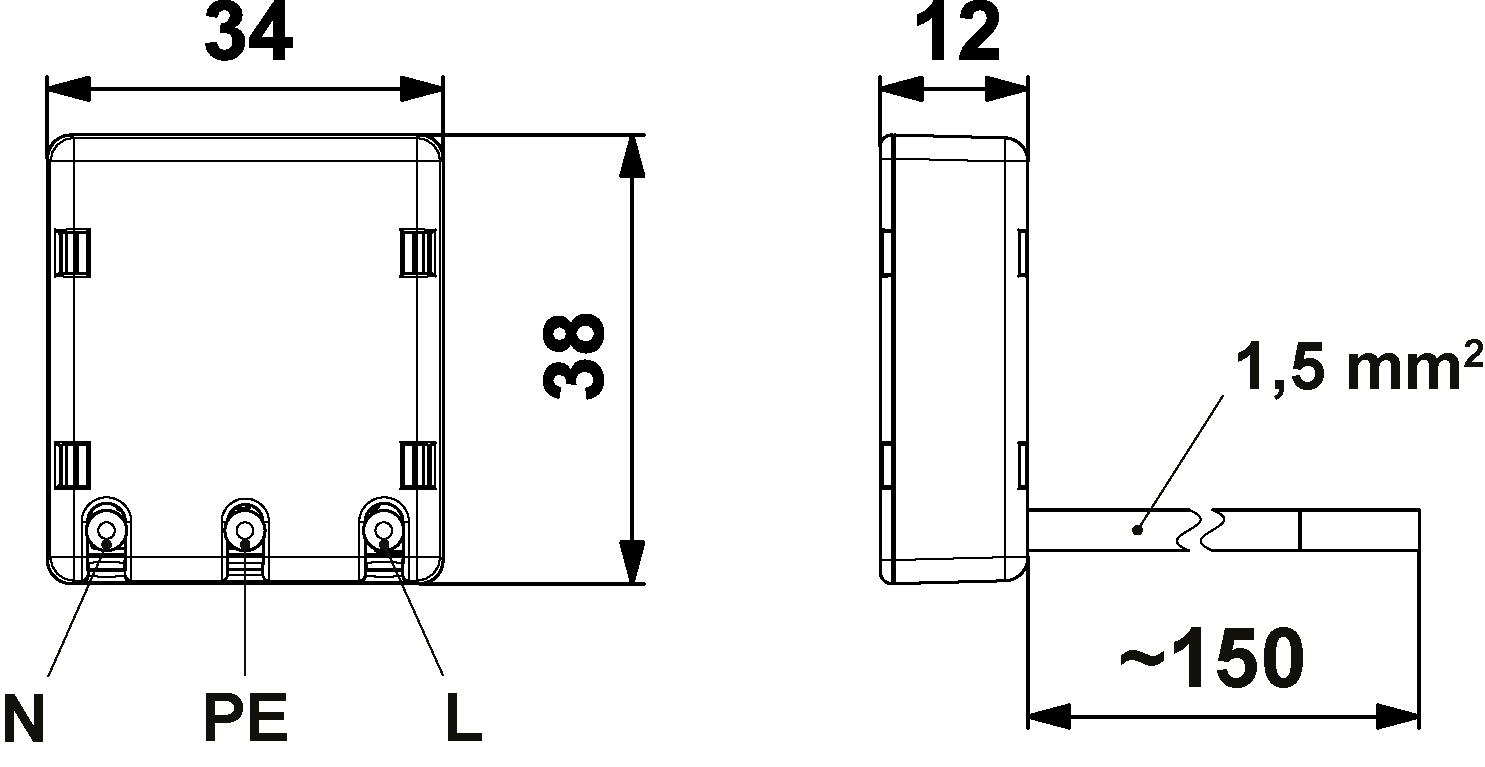

  • Product dimensions

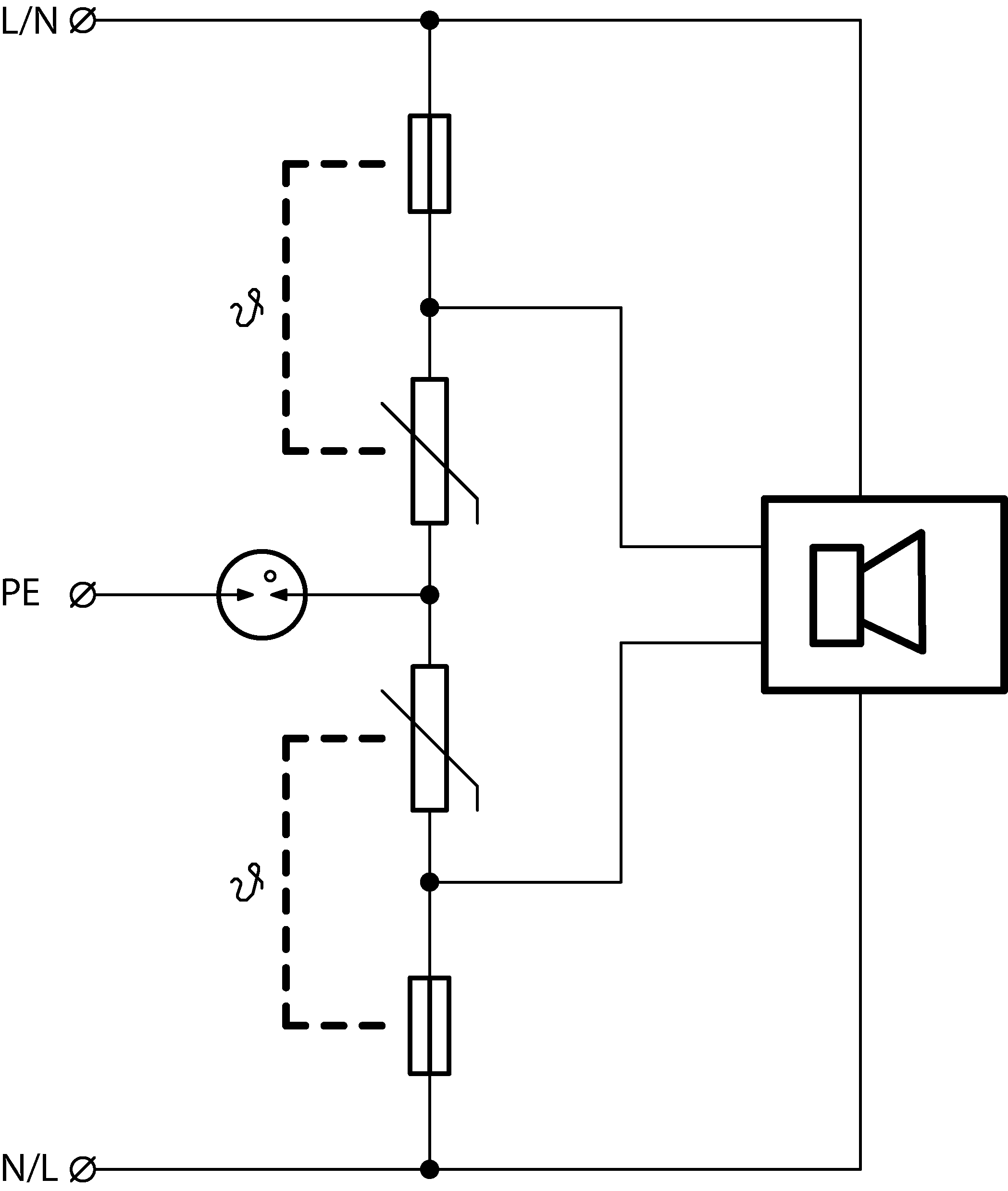

  • Basic circuit diagram
